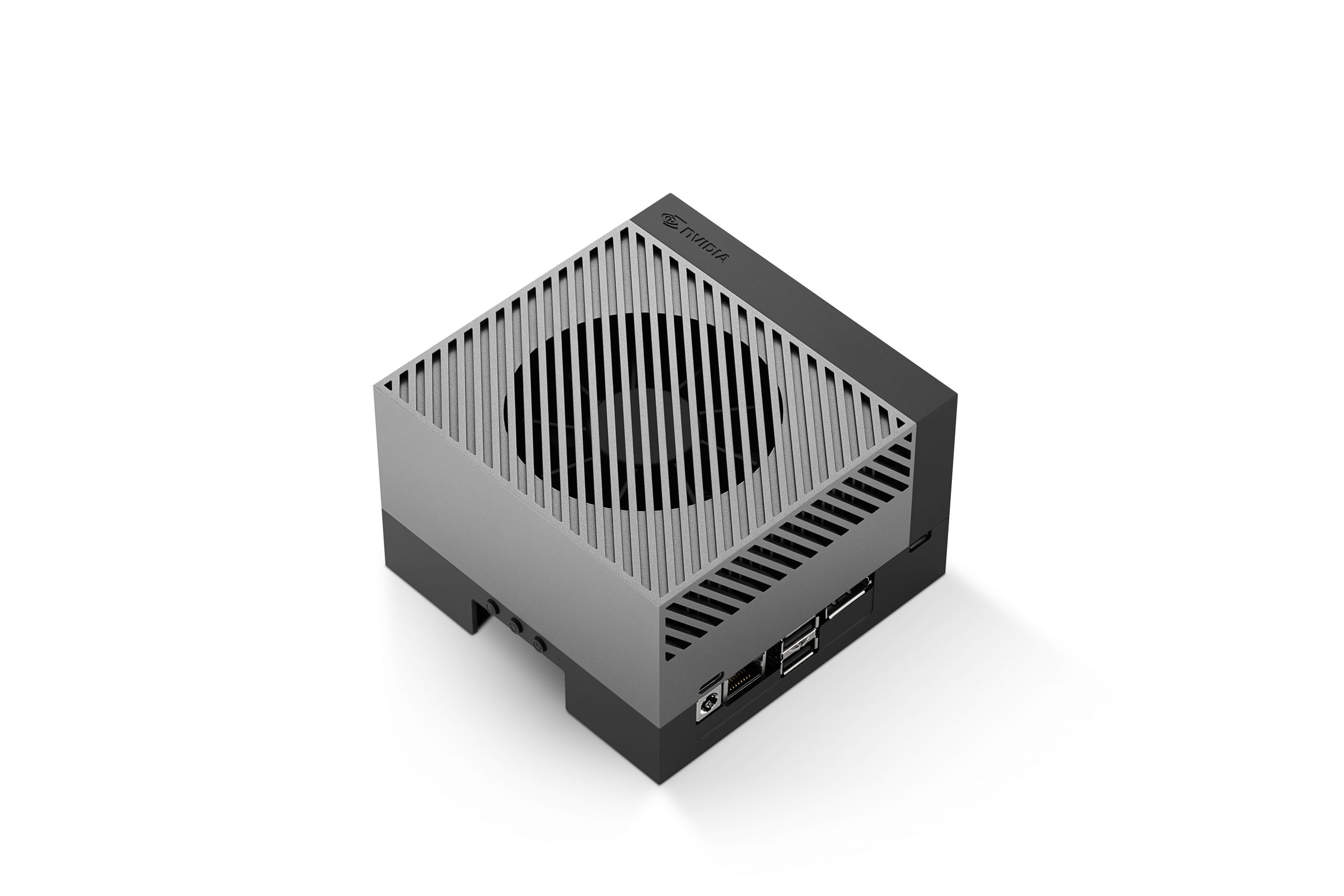

The NVIDIA® Jetson AGX Orin™ Developer Kit includes includes a high-performance, power-efficient Jetson AGX Orin module, and can emulate the other Jetson Orin modules. You now have up to 275 TOPS and 8X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor for developing advanced robots and other autonomous machine products.
HK $ 15999
Lead Time: 1-2 days upon receipt of payment
The Tech Specs
| JETSON AGX ORIN MODULE | |||
|---|---|---|---|
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor cores | ||
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | ||
| DL Accelerator | 2x NVDLA v2.0 | ||
| Vision Accelerator | PVA v2.0 | ||
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s |
||
| Storage | 64GB eMMC 5.1 | ||
| Video Encode | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) | ||
| Video Decode | 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265) | ||
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
| REFERENCE CARRIER BOARD | |||
|---|---|---|---|
| Camera | 16 lane MIPI CSI-2 connector | ||
| PCIe | x16 PCIe slot supporting x8 PCIe Gen4 | ||
| RJ45 | Up to 10 GbE | ||
| M.2 Key M | x4 PCIe Gen 4 | ||
| M.2 Key E | x1 PCIe Gen 4, USB 2.0, UART, I2S | ||
| USB Type-C | 2x USB 3.2 Gen2 with USB-PD support | ||
| USB Type-A | 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 | ||
| USB Micro-B | USB 2.0 | ||
| DisplayPort | DisplayPort 1.4a (+MST) | ||
| microSD slot | UHS-1 cards up to SDR104 mode | ||
| Other | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons |
||
| Dimensions | 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution) |
||
