JETSON XAVIER NX MODULE

JETSON XAVIER NX MODULE

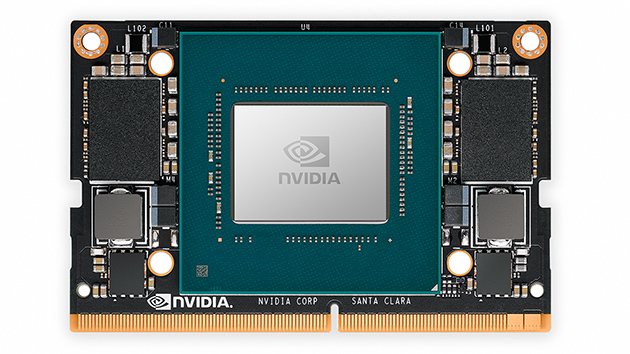

Smaller than a credit card (70×45 mm), the energy-efficient Jetson Xavier NX module delivers server-class performance—21 TOPS (at 15 W) or up to 14 TOPS (at 10 W). It can run multiple modern neural networks in parallel and process data from multiple high-resolution sensors—a requirement for full AI systems. Available cloud-native support makes it easier than ever to develop and deploy AI software to edge devices.



Jetson Xavier NX is production-ready and supports all popular AI frameworks. This opens the door for embedded edge-computing devices that demand increased performance to support AI workloads but are constrained by size, weight, power budget, or cost.

Developer Kit Technical Specifications
GPU NVIDIA Volta architecture
with 384 NVIDIA® CUDA® cores and 48 Tensor cores
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6 MB L2 + 4 MB L3
DLA 2x NVDLA Engines
Vision Accelerator 7-Way VLIW Vision Processor
Memory 8 GB 128-bit LPDDR4x 51.2GB/s
Storage microSD (Card not included)
Video Encode 2x 4Kp30 | 6x 1080p 60 | 14x 1080p30 (H.265/H.264)
Video Decode 2x 4Kp60 | 4x 4Kp30 | 12x 1080p60 | 32x 1080p30 (H.265)
2x 4Kp30 | 6x 1080p60 |16x 1080p30 (H.264)
Camera 2x MIPI CSI-2 D-PHY lanes
Connectivity Gigabit Ethernet, M.2 Key E (WiFi/BT included), M.2 Key M (NVMe)
Display HDMI and DP
USB 4x USB 3.1, USB 2.0 Micro-B
Others GPIOs, I2C, I2S, SPI, UART
Mechanical 103 mm x 90.5 mm x 34 mm
